Power towers Plate Polishing Machine Model BP1000

Brand Name : Auten

Model Number : BP1000

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 500 sets/ year

Delivery Time : 30 days

Packaging Details : nude

Max. processing plate width : 1000mm

Processing plate thickness : 2-100mm

Processing plate length : 100mm～∞

Min. workpiece : 50x50x2mm

Max. loading capacity : 500kgs

Machine power : 28KW

Feed motor : 2KW

Feeding speed : 10～4000 mm/min

Abrasive belt deburring slag, burrs : Height less than 1.5mm

Cartridge dust collector : 5.5KW

Cartridge dust collector size : 1000x1000x2100mm

Machine dimensions : 2450x1700x2150mm

Weight : 2.5 tons

Contact Now

Plate Polishing Machine Model BP1000

Power towers Plate Polishing Machine Model BP1000

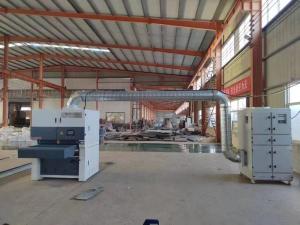

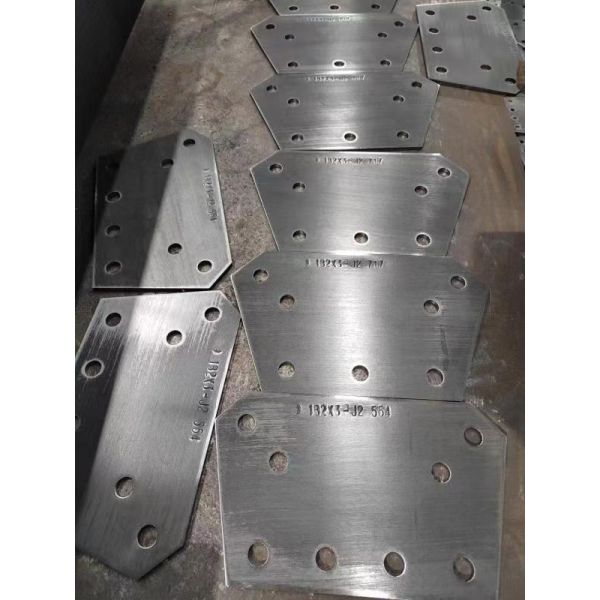

Equipment Purpose: Plate polishing machine is mainly used for polishing of laser cutting and plasma cutting.

Application industries: Electric power towers, communication towers, power fittings, steel structures, storage shelves, etc.

Power towers Plate Polishing Machine Model BP1000

Equipment features:

1. Automatic continuous feeding, unlimited length, improve production efficiency and reduce production costs.

2. CNC control is adopted, operation information and status are fed back in time, and the operation is simple.

3. CNC PLC and touch screen control are adopted, one-button start and stop are adopted, and the operation is simple and convenient.

4. Pneumatic tensioning device, stable operation, ensures the service life of the abrasive belt.

5. The equipment is simple and convenient to operate, safe and reliable in performance, and high in production efficiency.

Power towers Plate Polishing Machine Model BP1000

Power towers Plate Polishing Machine Model BP1000

Technical Parameter

No. Model BP1000
1 Max. processing plate width 1000mm
2 Processing plate thickness 2-100mm
3 Processing plate length 100mm～∞
4 Min. workpiece 50x50x2mm
5 Max. loading capacity 500kgs
6 Machine power 28KW
7 Feed motor 2
8 Feeding speed 10～4000 mm/min
9 Abrasive belt deburring slag, burrs Height less than 1.5mm
10 Cartridge dust collector 5.5KW
11 Cartridge dust collector size 1000x1000x2100mm
12 Machine dimensions 2450x1700x2150mm
13 Weight 2.5 tons
